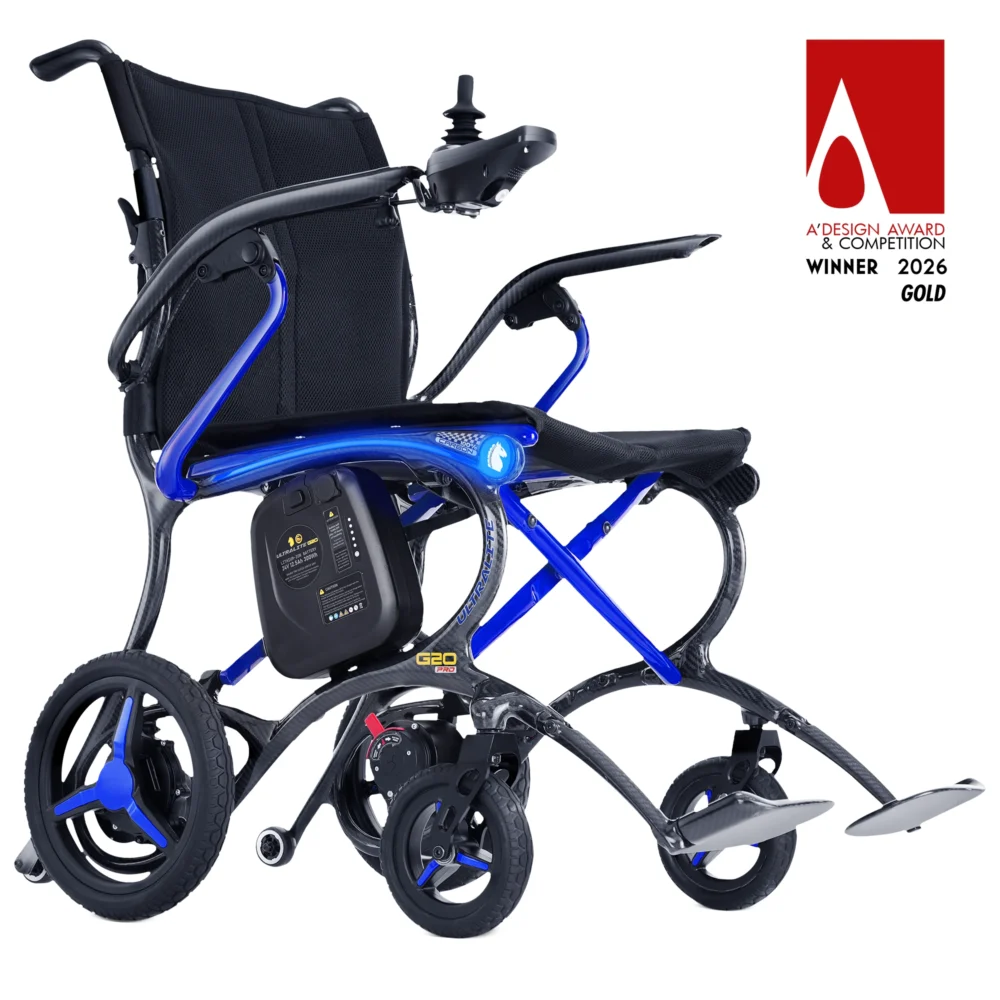

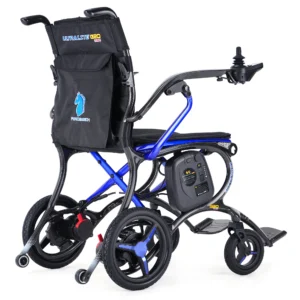

CARBOFLEXION™ 100% Carbon Fiber Frame
- Upgraded Ergonomics for Longer Use
- Ambient/DRL Glow + Rear Brake Light for Low-Light Visibility & Safety
- CARBOFLEXION™ 100% Carbon Fiber Frame
- Easy Folding and Unfolding for Travel
- FAA-Compliant Battery for Air + Cruise Travel
WHERE TO BUY LOCALLY
PRICE
| $3,099.00 |
- Upgraded Ergonomics for Longer Use
- Ambient/DRL Glow + Rear Brake Light for Low-Light Visibility & Safety
- CARBOFLEXION™ 100% Carbon Fiber Frame
- Easy Folding and Unfolding for Travel
- FAA-Compliant Battery for Air + Cruise Travel
WHERE TO BUY LOCALLY
PRICE
$3,099.00
Free Shipping
Hassle-Free Warranty
Lifetime Customer Support
Long-lasting Quality
US Local Service and Repair
Free Shipping
We offer free shipping on all orders within the contiguous U.S. with most deliveries arriving within 3–7 business days. No hidden fees or extra steps required.
Hassle-Free Warranty
Forcemech provides a clear and reliable warranty to ensure your peace of mind. Our expert support team is available to assist you with any warranty-related inquiries.
Main Frame: 5 Years
Motors: 3 Years
Controller Unit: 1 Year
Batteries: 1 Year
Joystick Controller: 1 Year
Lifetime Customer Support
Forcemech offers lifetime customer support for your peace of mind. Whether you need help with setup, maintenance, or troubleshooting, our team is always available.
Long-Lasting Quality
Crafted with a full carbon fiber frame for exceptional durability and a sleek finish. Designed to endure years of use while maintaining lightweight reliability.
US Local Service and Repair
Forcemech provides U.S.-based service and repair to keep your chair in top condition. With authorized service partners across the U.S., repairs are handled locally without delays.
Features
Specs
FAQ
Manual
Back to Top

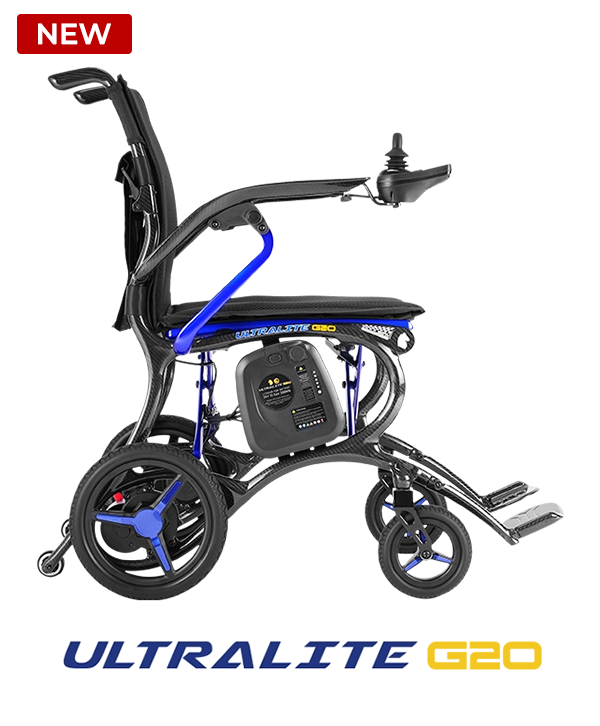

NEW
THE BEST
JUST GOT BETTER.

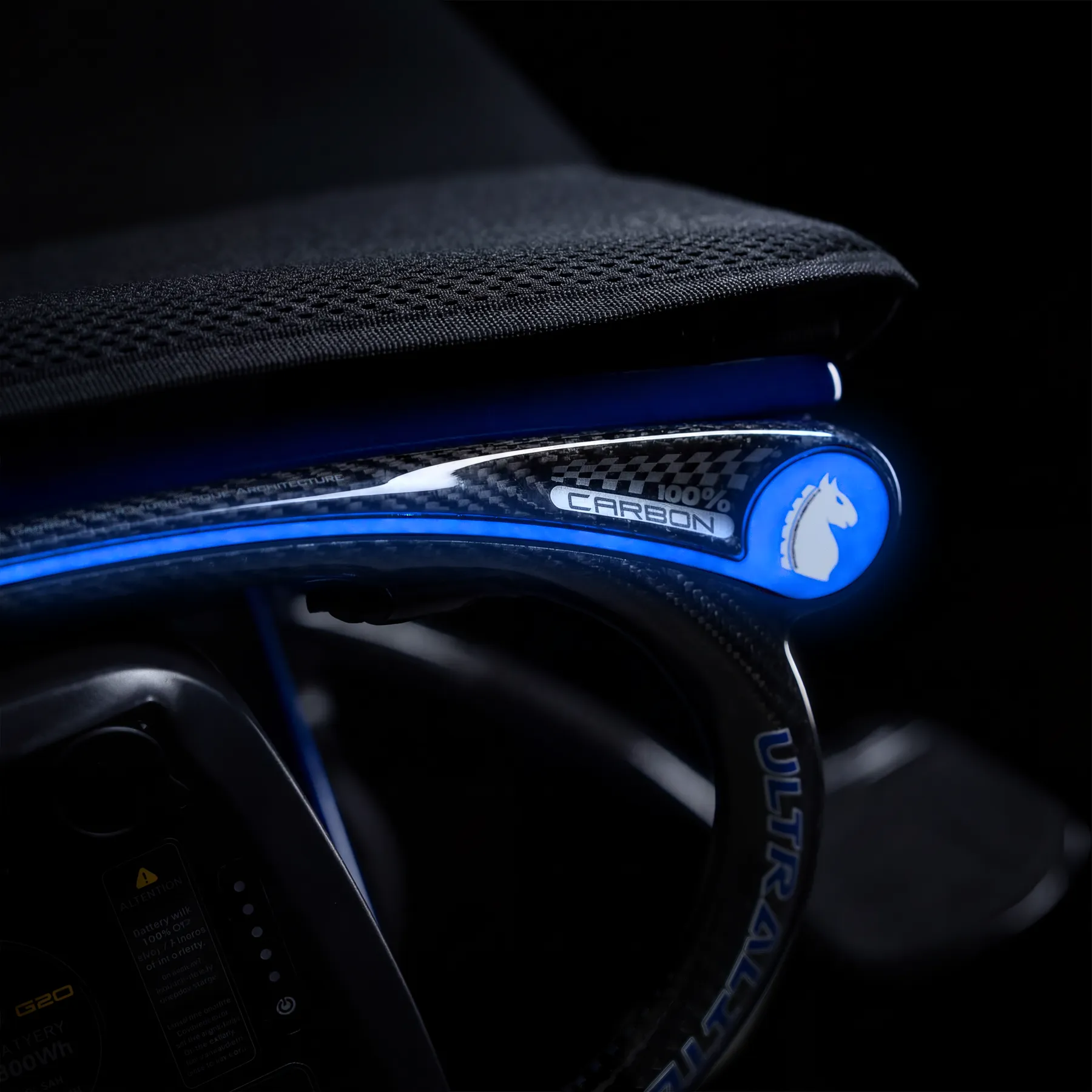

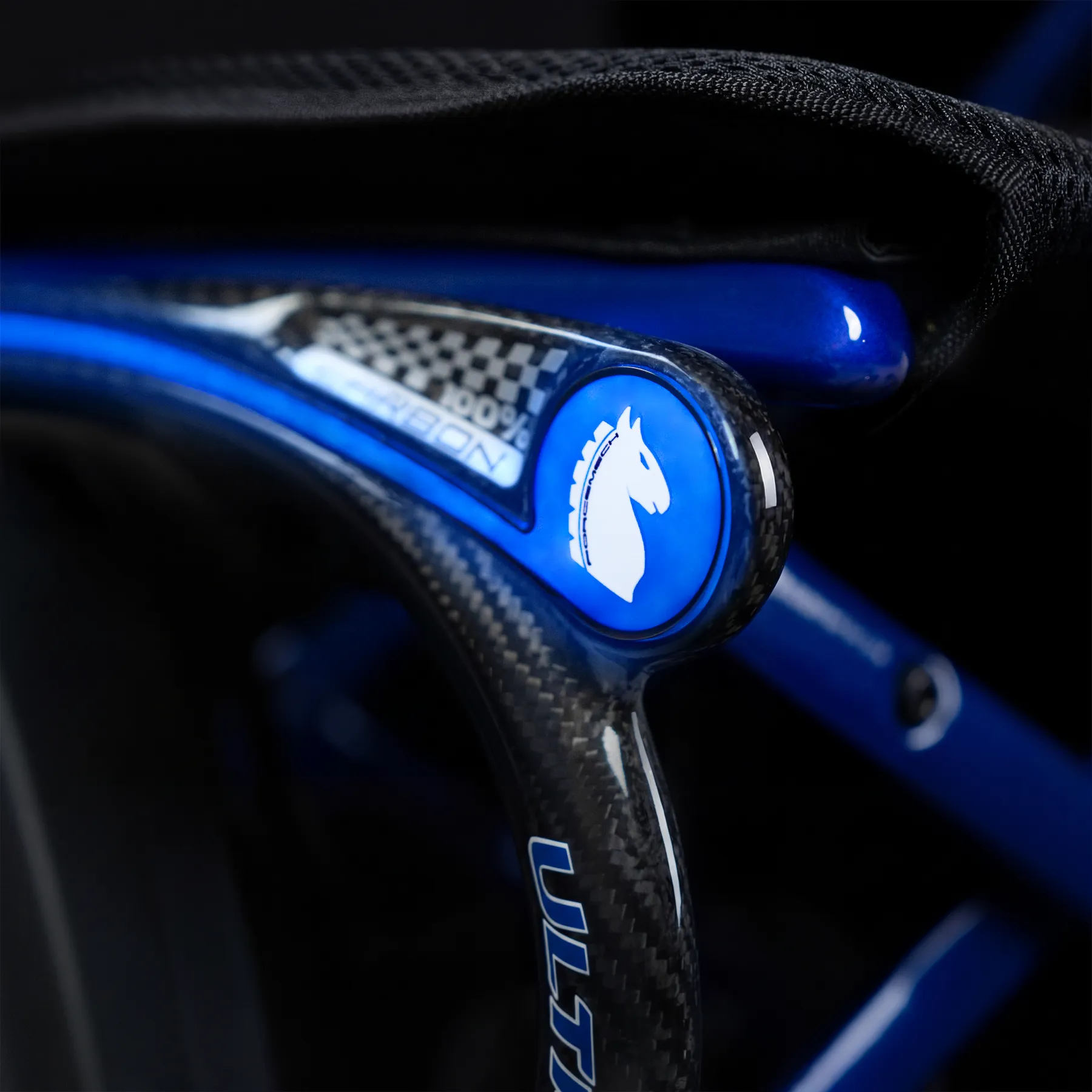

Integrated LED Lighting
Multi-Color Visibility, Built Into the Frame
Selectable white, purple, red, and blue ambient lighting works with the rear brake light to improve side and rear visibility in low light.

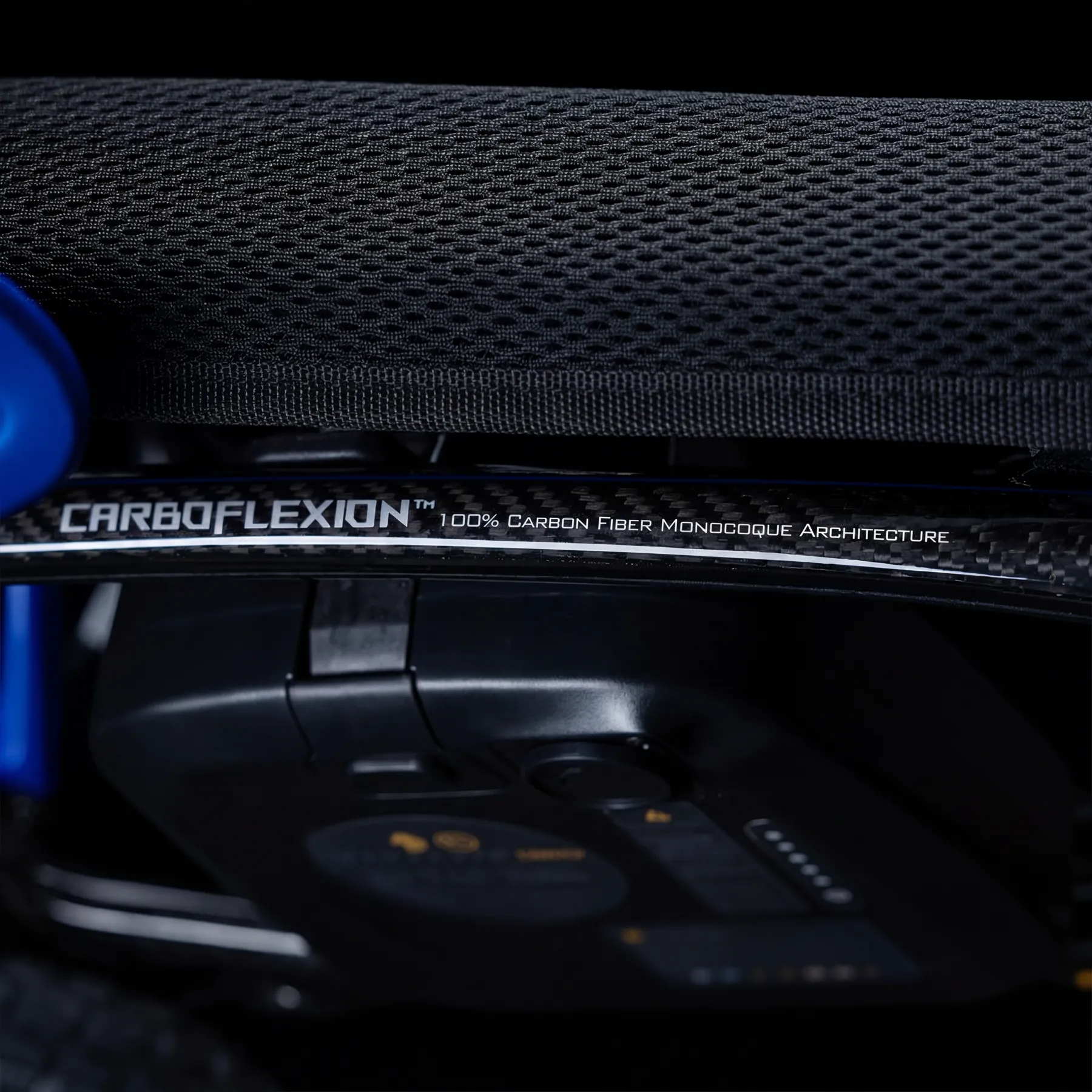

CARBOFLEXION™ 100% Carbon Fiber Frame
Ultra-Light Strength for Everyday Mobility
Carbon Fiber VS. STEEL
1/410×The Weight Of SteelStronger Than Steel
At just 25 lbs with a 300 lbs capacity, the ULTRALITE G20 PRO delivers
carbon fiber strength in an ultra-portable powerchair built for travel with ease.
Upgraded Ergonomics
Refined seat and backrest support a more natural riding posture, delivering greater comfort, balance, and stability for longer use.

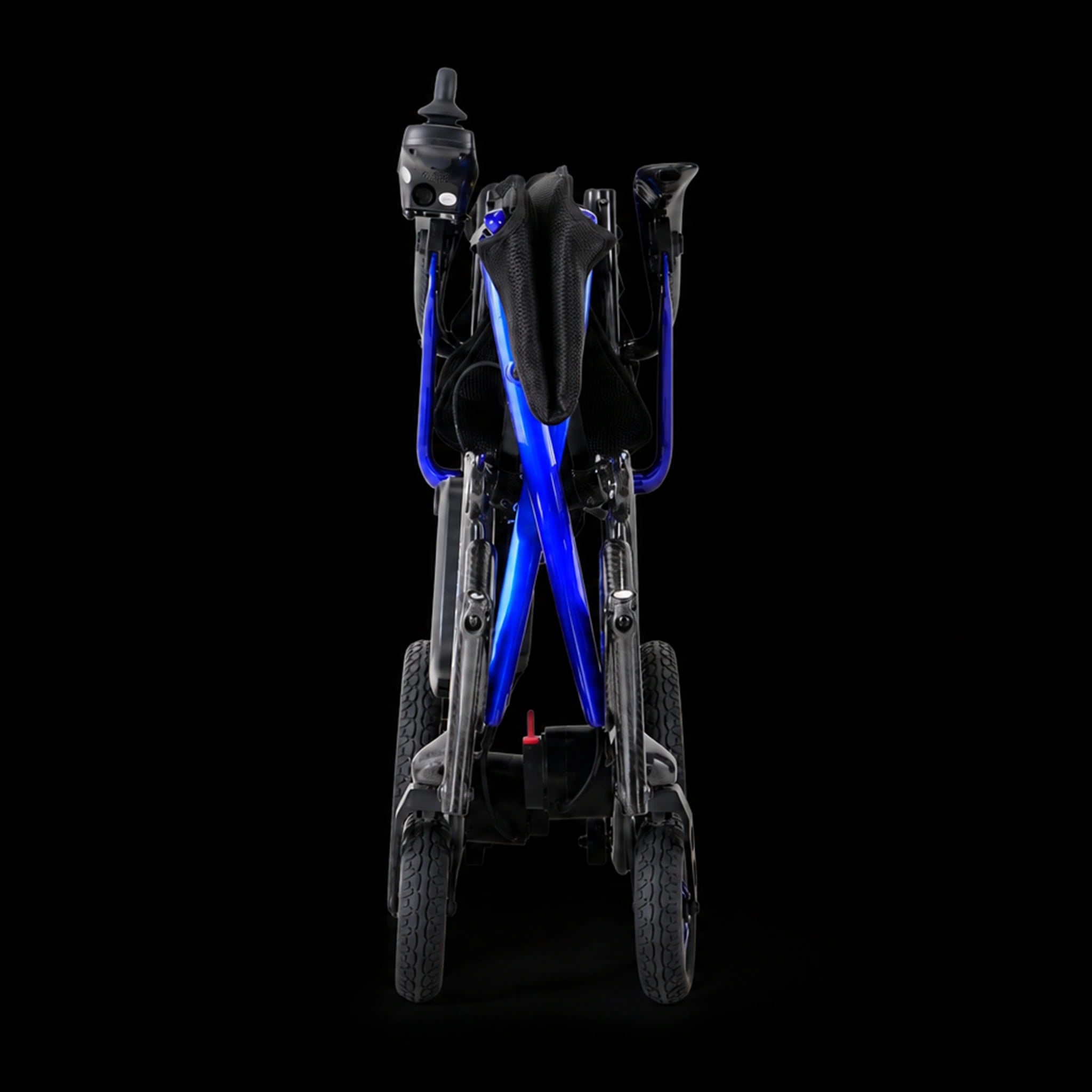

Folds in Just Three Steps
Forcemech foldable powerchairs - the Full Carbon Fiber series and Navigators are FAA approved and designed for easy folding and in-flight storage. Enjoy a hassle-free travel experience with our lightweight and durable chairs.
Air + Cruise Travel Ready
Lightweight Lift. Effortless Travel.
At just 25 lbs, the ULTRALITE G20 PRO folds easily for lifting,
storage, and travel—with a ForceMax™ 24V / 12.5Ah
lithium battery designed to align with FAA air-travel
battery guidelines for air and cruise trips.
25LBS
Chair Weight
Cruise Ready
Fly Ready
25LBS
Chair Weight
Cruise Ready
Fly Ready

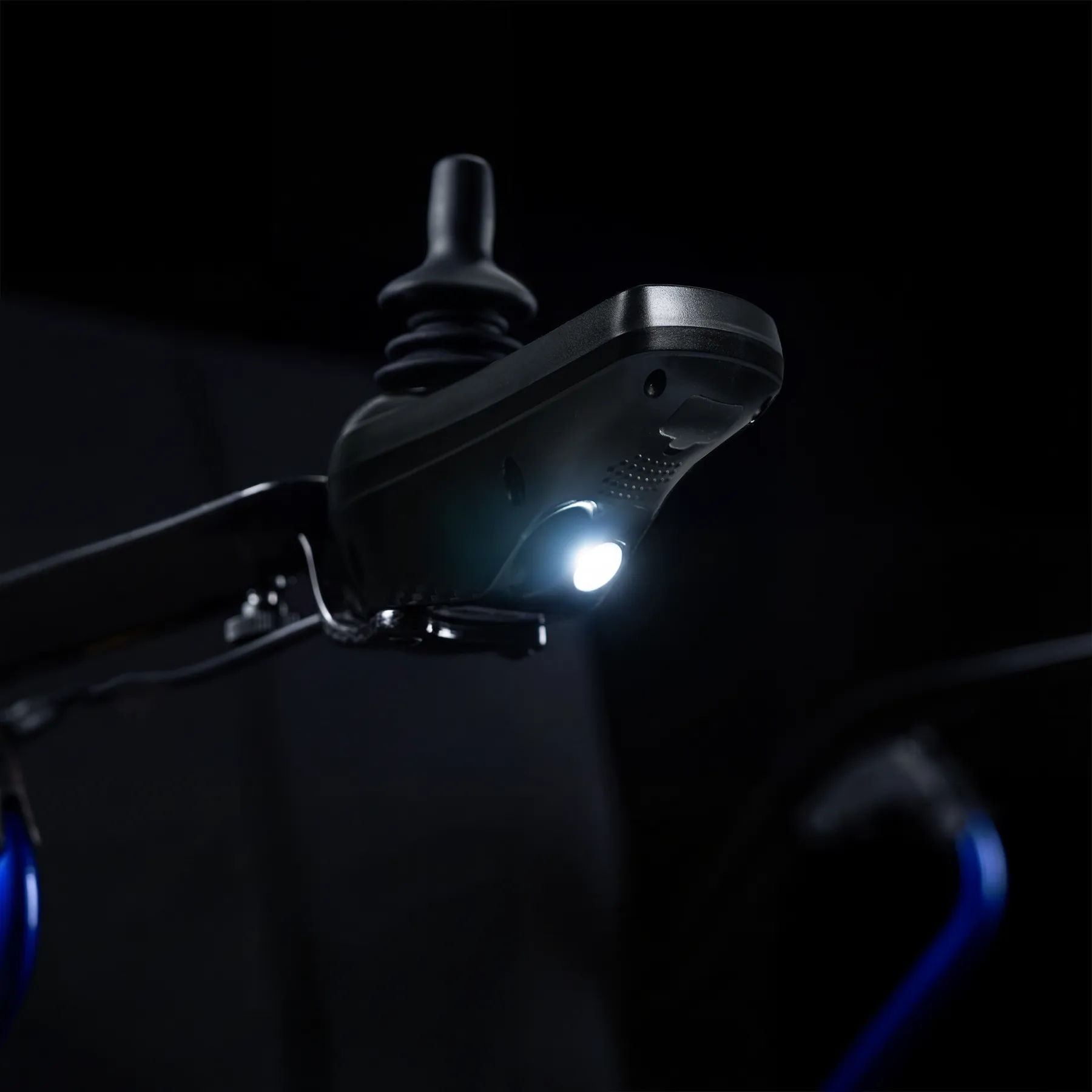

All-Directional Smart Controller
LED Info Screen + Voice Guidance
Stay informed with a bright LED display and voice guidance
designed for easier, eyes-off control on the go.
Engineered in Every Detail
From the CARBOFLEXION™ carbon fiber frame to integrated LED lighting and refined ergonomic support,
every detail is designed to make each ride feel lighter, smoother, and more confident.
Spec Sheet
| Overall Dimensions (L*W*H) | 36" x 24" x 36" | Folded Dimensions (L*W*H) | 29" x 10" x 28" |
| Total Weight (Without Battery) | 25 lbs | Battery Weight | 3 lbs |
| Mass of the Heaviest Part | 2.8 lbs | Pivot Width | 43" |
| Reversing Width | 59" | Turning Radius | 28" |
| Ground Clearance | 1.25" | Required Width of Angled Corridor | 39" |
| Required Doorway Entry Depth | 53" | Required Corridor Width for Side Opening | 35" |
| Static Stability | 9° | Driving Distance | 12 miles |
| Dynamic Stability Uphill | 6° | Climbing Ability | 3° |
| Maximum Climbing Degree | 12° | Max Over the Obstacle Height | ±1" |
| Maximum Speed Forward | ≤4.5 mph | Minimum Braking Distance from Max Speed | ≤39" |
| Seat Plane Angle | 4° | Effective Seat Depth | 17.5" |
| Seat Width | 18" | Effective Seat Width | 20" |
| Seat Surface Height at Front Edge | 18.5" | Backrest Angle | 12° |
| Backrest Height | 17" | Back Support Height / Backrest Height | 17" |
| Distance from Footrest to Seat | 15.3" | Distance from Footrest to Surface | 3" |
| Footrest Length | 4.5" | Footrest to Leg Angle | 97° |
| Leg to Seat Surface Angle | 114° | Armrest Height | 9.5" |
| Front Location of Armrest Structure | 14" | Armrest Length | 15" |
| Armrest Width | 2" | Armrest Angle | 2.5° |
| Audible Noise | ≤65 dB(A-weighted) | The Forces Necessary to Operate the Control Devices | Push-button 2N, Rocker ≤5N |
| Motor Power | 250W | Lithium Battery Specification | 24V 12.5Ah |
| Maximum Output Current of Controller | 35 A | Maximum Output Current of Charger | 2 A |
| Diameter of Movable Wheels / Castor Wheel Diameter | 6.5" | Diameter of Fixed Wheels / Propelling Wheel Diameter | 11" |
| Linear Tolerance | ±2" | Angular Tolerance | ±2° |
| Mass Tolerance | ±4.4 lbs |
Overall Dimensions (L*W*H)
36" x 24" x 36"
Folded Dimensions (L*W*H)
29" x 10" x 28"
Total Weight (Without Battery)
25 lbs
Battery Weight
3 lbs
Mass of the Heaviest Part
2.8 lbs
Pivot Width
43"
Reversing Width
59"
Turning Radius
28"
Ground Clearance
1.25"
Required Width of Angled Corridor
39"
Required Doorway Entry Depth
53"
Required Corridor Width for Side Opening
35"
Static Stability
9°
Driving Distance
12 miles
Dynamic Stability Uphill
6°
Climbing Ability
3°
Maximum Climbing Degree
12°
Max Over the Obstacle Height
±1"
Maximum Speed Forward
≤ 4.5 mph
Minimum Braking Distance From Max Speed
≤ 39"
Seat Plane Angle
4°
Effective Seat Depth
17.5"
Seat Width
18"
Effective Seat Width
20"
Seat Surface Height at Front Edge
18.5"
Backrest Angle
12°
Backrest Height
17"
Back Support Height / Backrest Height
17"
Distance From Footrest to Seat
15.3"
Distance From Footrest to Surface
3"
Footrest Length
4.5"
Footrest to Leg Angle
97°
Leg to Seat Surface Angle
114°
Armrest Height
9.5"
Front Location of Armrest Structure
14"
Armrest Length
15"
Armrest Width
2"
Armrest Angle
2.5°
Audible Noise
≤ 65 dB (A-weighted)
The Forces Necessary to Operate the Control Devices
Push-button 2N, Rocker ≤5N
Motor Power
250W
Lithium Battery Specification
24V 12.5Ah
Maximum Output Current of Controller
35 A
Maximum Output Current of Charger
2 A
Diameter of Movable Wheels / Castor Wheel Diameter
6.5"
Diameter of Fixed Wheels / Propelling Wheel Diameter
11"
Linear Tolerance
±2"
Angular Tolerance
±2°
Mass Tolerance
±4.4 lbs
FAQ
Why choose the ULTRALITE G20 PRO?
The ULTRALITE G20 PRO brings lightweight carbon fiber strength, refined comfort, travel-ready convenience, and smart ride support together in one premium powerchair.
What are the key upgrades of the ULTRALITE G20 PRO?
The ULTRALITE G20 PRO adds meaningful upgrades in visibility, comfort, battery capacity, and rider information for a more refined everyday riding experience.
How easy is the ULTRALITE G20 PRO to lift and handle?
At 25 lbs without the battery and a 300 lbs capacity, the ULTRALITE G20 PRO is built to feel easier to lift, store, and bring along for daily mobility or travel.
What battery system powers the ULTRALITE G20 PRO?
The ULTRALITE G20 PRO is powered by a ForceMax™ 24V / 12.5Ah lithium battery, offering strong battery capacity for daily mobility and travel-friendly use.
Can I take the ULTRALITE G20 PRO on flights or cruises?
Yes. The ULTRALITE G20 PRO is designed to be Air + Cruise Travel Ready. Please confirm current mobility device and battery policies with your airline or cruise line before departure.
How does the ULTRALITE G20 PRO make everyday rides feel easier?
The ULTRALITE G20 PRO combines upgraded ergonomics, a three-light LED system with two side lights and a rear brake light, and an All-Directional Smart Controller to support comfort, visibility, and easier control on the go.
Where can I receive service or support for the ULTRALITE G20 PRO?
For service or support, please contact Forcemech customer support or visit the official Forcemech website to find an authorized dealer near you.
