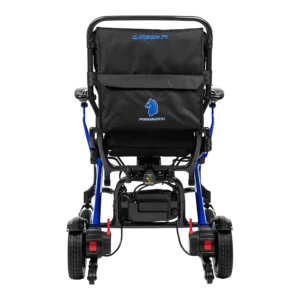

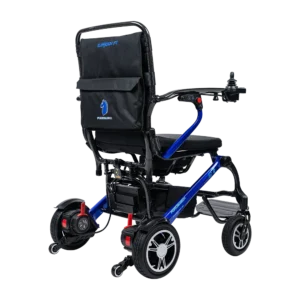

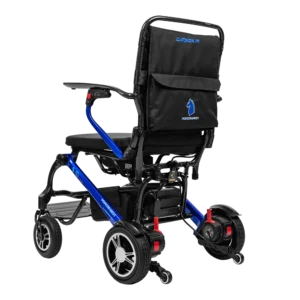

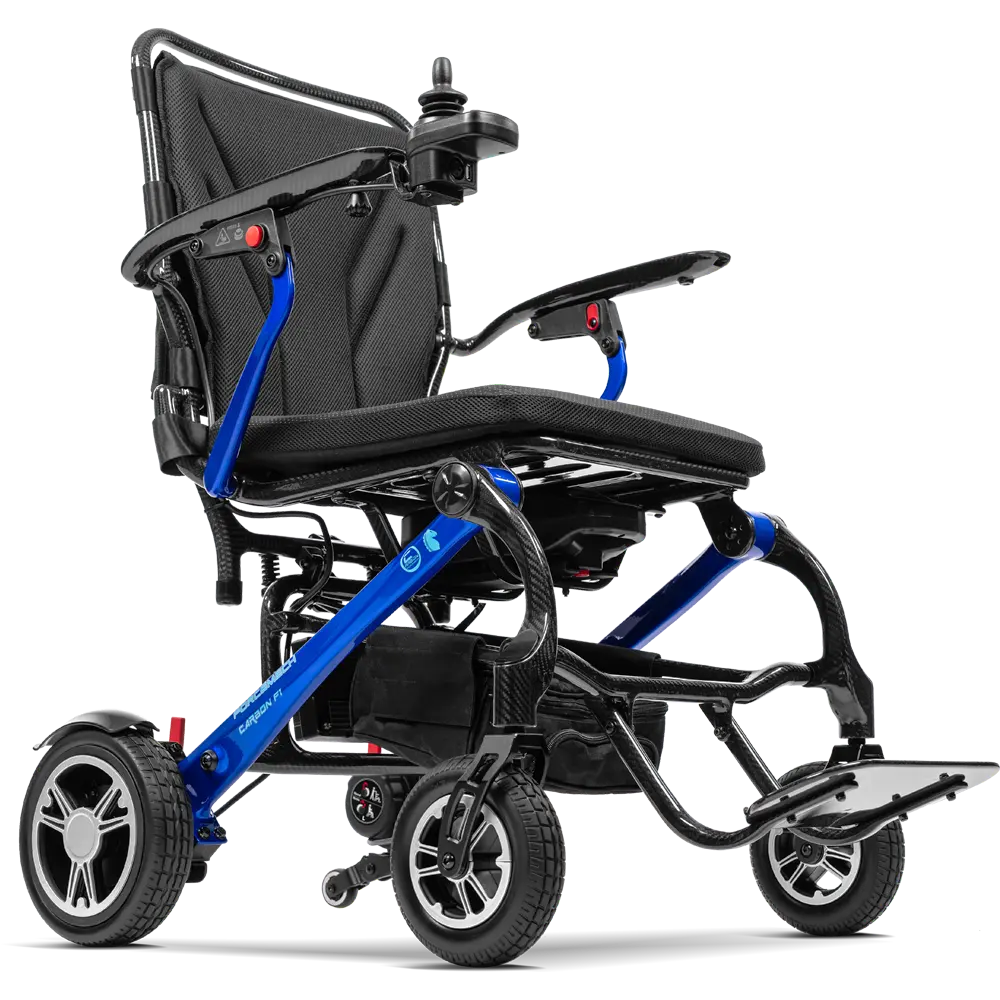

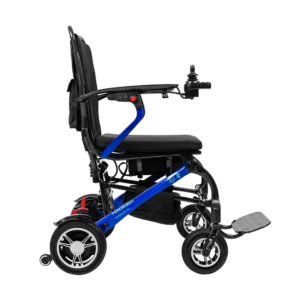

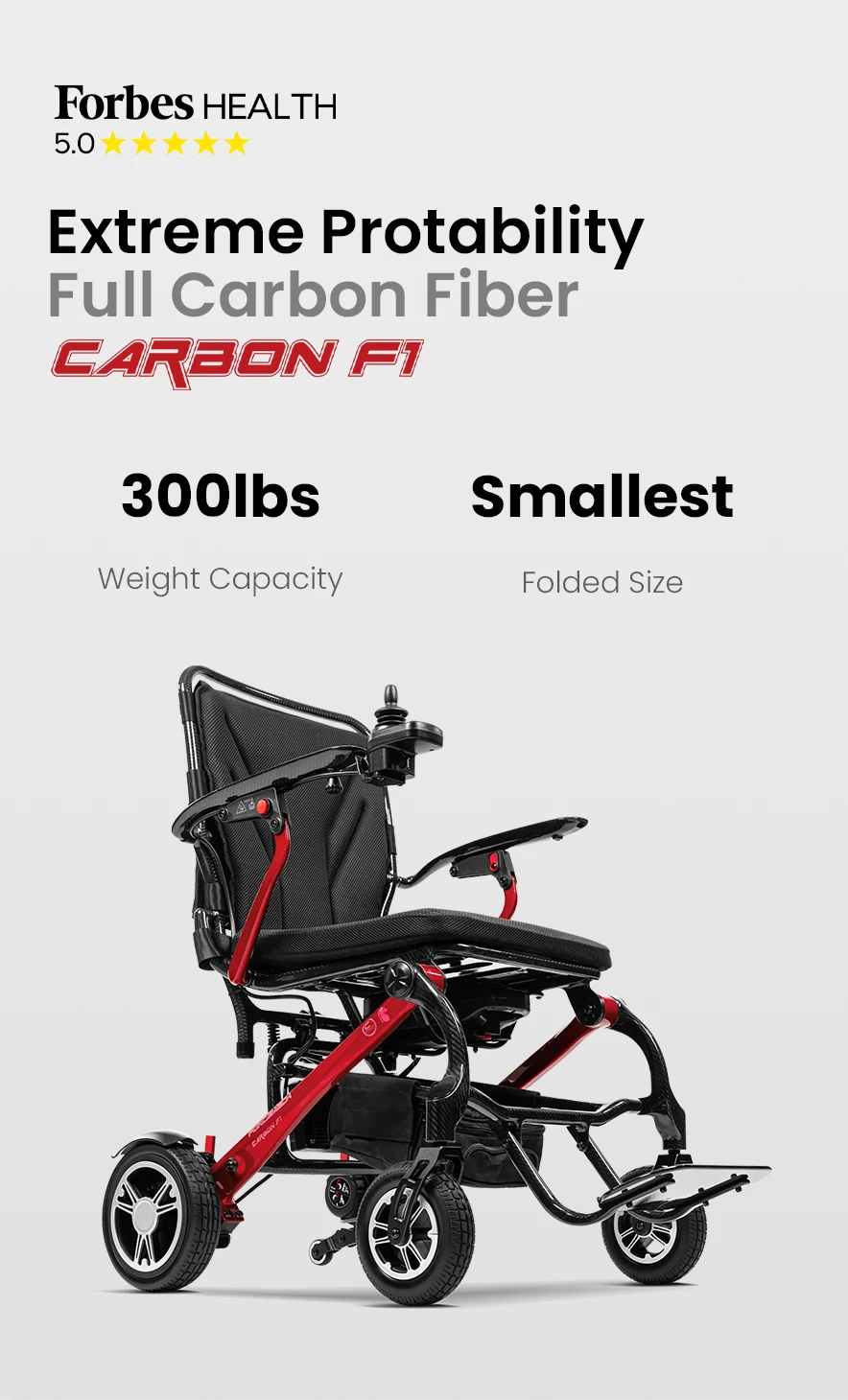

The Forcemech Carbon F1 is rated Forbes
Health Best Light Chair Design
- FULL Carbon Fiber Frame at 33lbs
- 300lbs Weight Capacity
- Split-Second Folding / Unfolding
- FAA Air Travel and Cruise Ready
WHERE TO BUY LOCALLY
PRICE
| MSRP | $3,699.00 |
| $2,799.00 |
- FULL Carbon Fiber Frame at 33lbs
- 300lbs Weight Capacity
- Split-Second Folding / Unfolding
- FAA Air Travel and Cruise Ready
WHERE TO BUY LOCALLY
PRICE
Original price was: $3,699.00.$2,799.00Current price is: $2,799.00.
Free Shipping
Hassle-Free Warranty
Lifetime Customer Support
Long-lasting Quality
US Local Service and Repair
Free Shipping
We offer free shipping on all orders within the contiguous U.S. with most deliveries arriving within 3–7 business days. No hidden fees or extra steps required.
Hassle-Free Warranty
Forcemech provides a clear and reliable warranty to ensure your peace of mind. Our expert support team is available to assist you with any warranty-related inquiries.
Main Frame: 5 Years
Motors: 3 Years
Controller Unit: 1 Year
Batteries: 1 Year
Joystick Controller: 1 Year
Lifetime Customer Support
Forcemech offers lifetime customer support for your peace of mind. Whether you need help with setup, maintenance, or troubleshooting, our team is always available.
Long-Lasting Quality
Crafted with a full carbon fiber frame for exceptional durability and a sleek finish. Designed to endure years of use while maintaining lightweight reliability.
US Local Service and Repair
Forcemech provides U.S.-based service and repair to keep your chair in top condition. With authorized service partners across the U.S., repairs are handled locally without delays.
Features
Specs
FAQ
Manual
Back to Top

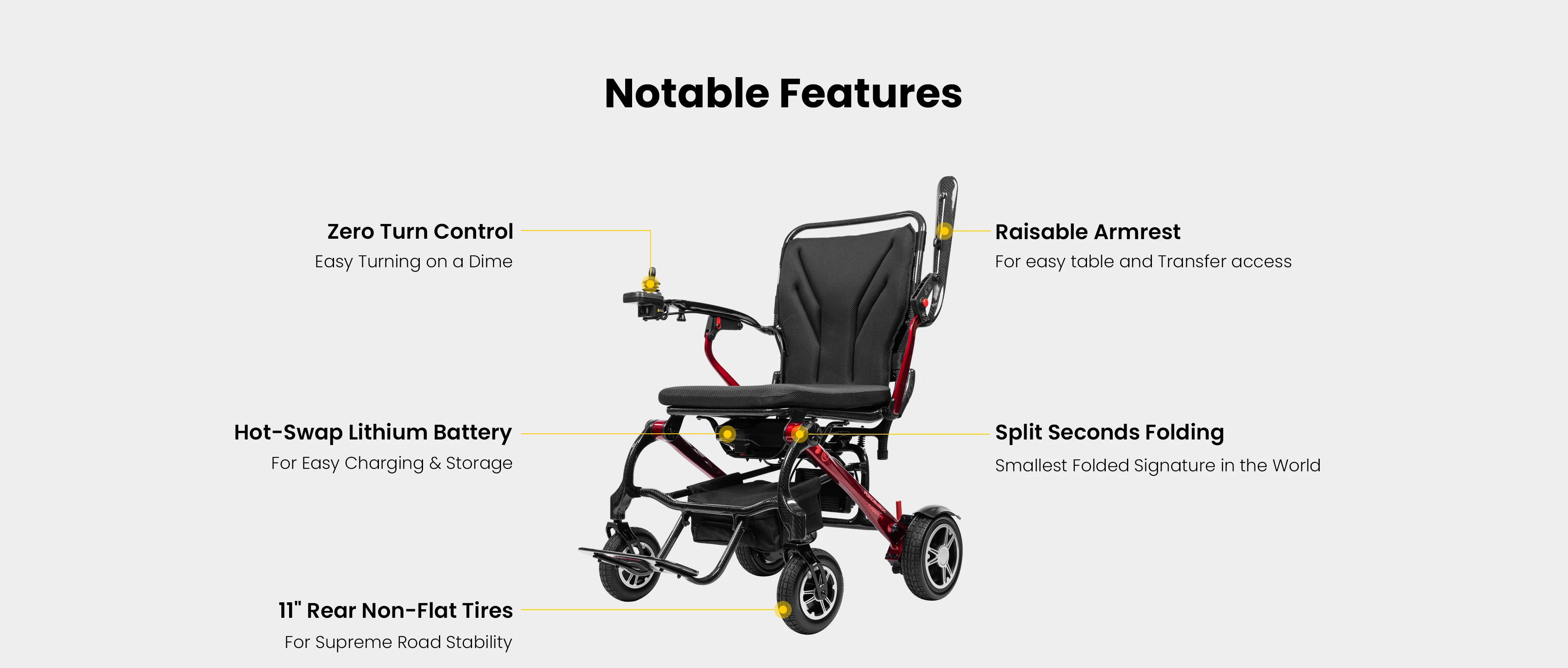

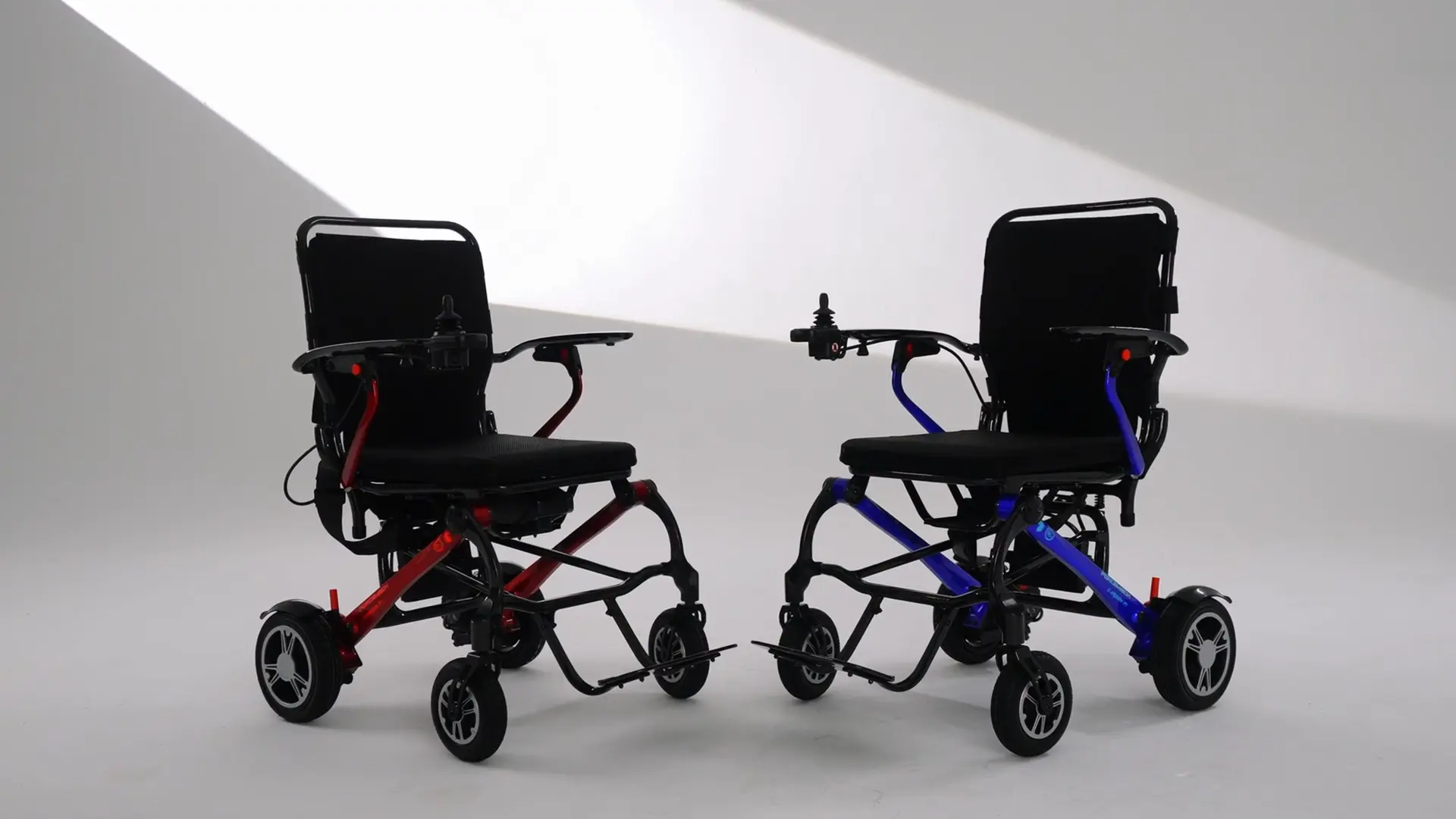

Engineered for Effortless Mobility
Carbon Fiber VS STEEL
1/410×The WeightStronger than Steel
The Carbon F1 delivers exceptional portability with an ultra-compact folded signature, made possible by its rapid front-and-back dual-fold design. Its full carbon-fiber frame offers outstanding performance.
Forbes Health Rated Five Stars
Best Lightweight Chair Design
The Carbon F1 pairs an ultra-compact, fast-folding design with the strength and lightness of a full carbon-fiber frame. Recognized by Forbes Health as the Best Lightweight Chair Design, it delivers exceptional portability, durability, and everyday ease of use in a premium, travel-ready package.
SMART LITHIUM POWER REAL-WORLD RANGE
300W10MilesPowerPer Charge
- Removable 10Ah battery
- Up to 4 mph Max speed
- Dual-bay ready
Spec Sheet
| Overall Dimensions (L x W x H) | 27" x 24" x 38" | Folded Dimensions (L x W x H) | 28" x 24" x 13" |
| Total Weight (Without Battery) | 33 lbs | Battery Weight | 2 lbs |
| Pivot Width | 43" | Mass Tolerance | ± 4.4 lbs |
| Reversing Width | 59" | Turning Radius | 24" |
| Ground Clearance | 2" | Required Width of Angled Corridor | 39" |
| Required Doorway Entry Depth | 62" | Required Corridor Width for Side Opening | 35" |
| Static Stability | 9° | Driving Distance | 10 miles |
| Dynamic Stability Uphill | 6° | Climbing Ability | 3° |
| Maximum Climbing Degree | 9° | Max Over the Obstacle Height | 1" |
| Maximum Speed Forward | ≤ 4 mph | Minimum Braking Distance From Max Speed | ≤ 39" |
| Seat Plane Angle | 3° | Effective Seat Depth | 17" |
| Seat Width | 16.5" | Effective Seat Width | 20" |
| Seat Surface Height at Front Edge | 20" | Backrest Angle | 13° |
| Backrest Height | 16.5" | Back Support Height / Backrest Height | 16.5" |
| Distance From Footrest to Seat | 17" | Distance From Footrest to Surface | 4.3" |
| Footrest Length | 6" | Footrest to Leg Angle | 107° |
| Leg to Seat Surface Angle | 106° | Armrest Height | 9" |
| Front Location of Armrest Structure | 18" | Armrest Length | 14.5" |
| Armrest Width | 2.4" | Armrest Angle | 4° |
| Audible Noise | ≤ 65 dB (A-Weighted) | The Forces Necessary to Operate the Control Devices | Push-Button 2 N, Rockers 5 N |
| Motor Model | 24 V / 200 W × 2 | Lithium Battery Specification | 24 V / 10 Ah |
| Maximum Output Current of Controller | 35 A | Maximum Output Current of Charger | 2 A |
| Diameter of Movable Wheels / Castor Wheel Diameter | 7" | Diameter of Fixed Wheels / Propelling Wheel Diameter | 8.5" |
| Linear Tolerance | ± 2° | Angular Tolerance | ± 2° |
Overall Dimensions (L x W x H)
27″ x 24″ x 38″
Folded Dimensions (L x W x H)
28″ x 24″ x 13″
Total Weight (Without Battery)
33 lbs
Battery Weight
2 lbs
Pivot Width
43″
Reversing Width
59″
Turning Radius
24″
Ground Clearance
2″
Required Width of Angled Corridor
39″
Required Doorway Entry Depth
62″
Required Corridor Width for Side Opening
35″
Static Stability
9°
Driving Distance
10 miles
Dynamic Stability Uphill
6°
Climbing Ability
3°
Maximum Climbing Degree
9°
Max Over the Obstacle Height
1″
Maximum Speed Forward
≤ 4 mph
Minimum Braking Distance From Max Speed
≤ 39″
Seat Plane Angle
3°
Effective Seat Depth
17″
Seat Width
16.5″
Effective Seat Width
20″
Seat Surface Height at Front Edge
20″
Backrest Angle
13°
Backrest Height
16.5″
Back Support Height / Backrest Height
16.5″
Distance From Footrest to Seat
17″
Distance From Footrest to Surface
4.3″
Footrest Length
6″
Footrest to Leg Angle
107°
Leg to Seat Surface Angle
106°
Armrest Height
9″
Front Location of Armrest Structure
18″
Armrest Length
14.5″
Armrest Width
2.4″
Armrest Angle
4°
Audible Noise
≤ 65 dB (A-Weighted)
The Forces Necessary to Operate the Control Devices
Push-Button 2 N, Rockers 5 N
Motor Model
24 V / 200 W × 2
Lithium Battery Specification
24 V / 10 Ah
Maximum Output Current of Controller
35 A
Maximum Output Current of Charger
2 A
Diameter of Movable Wheels / Castor Wheel Diameter
7″
Diameter of Fixed Wheels / Propelling Wheel Diameter
8.5″
Linear Tolerance
± 2°
Angular Tolerance
± 2°
Mass Tolerance
± 4.4 lbs
FAQ
What is the maximum weight capacity of the Carbon F1?
The Carbon F1 supports a maximum user weight capacity of 300 lbs (136 kg).
What is the frame material of the Carbon F1?
The frame is constructed from Full carbon fiber material, providing a balance of strength, durability, and lightweight performance.
How long does the Carbon F1 take to fully charge?
Under standard charging conditions, a full charge typically requires approximately 5–7 hours.
What is the maximum speed of the Carbon F1?
The maximum speed is 6 km/h (4 mph). Speed can be adjusted through the controller to suit user preference and operating conditions.
Can the Carbon F1 be folded?
Yes. The Carbon F1 is designed with a folding mechanism for easier transport and compact storage.
