Detailed Technical Specifications for the Current Forcemech Production Models:
Carbon F1
| Overall dimensions (LWH) | 27″ x 24″ x 38″ |
| Folded dimensions (LWH) | 28″ x 24″ x 13″ |
| Total weight (with battery) | 35 lbs |
| Battery weight | 2 lbs |
| Mass of the heaviest part | 3.8 lbs |
| Pivot width | 43″ |
| Reversing width | 59″ |
| Turning radius | 24″ |
| Ground clearance | 2″ |
| Required width of angled corridor | 39″ |
| Required doorway entry depth | 62″ |
| Required corridor width for side opening | 35″ |
| Static stability | 9° |
| Driving distance | 10 miles |
| Dynamic stability uphill | 6° |
| Climbing ability | 3° |
| Maximum Climbing Degree | 9° |
| Max over the obstacle height | 1″ |
| Maximum speed forward | ≤ 4 mph |
| Minimum braking distance from max speed | ≤ 39″ |
| Seat plane angle | 3° |
| Effective seat depth | 17″ |
| Seat width | 16.5″ |
| Effective seat width | 20″ |
| Seat surface height at front edge | 20″ |
| Backrest angle | 13° |
| Backrest height | 16.5″ |
| Back support height/Backrest height | 16.5″ |
| Distance from Footrest to Seat | 17″ |
| Distance from Footrest to Surface | 4.3″ |
| Footrest length | 6″ |
| Footrest to leg angle | 107° |
| Leg to seat surface angle | 106° |
| Armrest Height | 9″ |
| Front location of armrest structure | 18″ |
| Armrest Length | 14.5″ |
| Armrest Width | 2.4″ |
| Armrest Angle | 4° |
| Audible noise | ≤ 65 dB(A-weighted) |
| The forces necessary to operate the control devices | Push-button 2N, Rockers 5N |
| Motor Model | 24V/200W*2 |
| Lithium Battery Specification | 24V/10Ah |
| Maximum Output Current of Controller | 35A |
| Maximum Output Current of Charger | 2A |
| Diameter of movable wheels/Castor wheel diameter | 7″ |
| Diameter of fixed wheels/Propelling wheel diameter | 8.5″ |
| Linear Tolerance | ±2° |
| Angular Tolerance | ±2° |
| Mass Tolerance | ±4.4 lbs |
Ultralite G10
| Overall dimensions (LWH) | 36″ x 24″ x 35″ |
| Folded dimensions (LWH) | 29″ x 12″ x 28″ |
| Total weight (with battery) | 27 lbs |
| Battery weight | 2 lbs |
| Mass of the heaviest part | 2.2 lbs |
| Pivot width | 44″ |
| Reversing width | 59″ |
| Turning radius | 28″ |
| Ground clearance | 1.25″ |
| Required width of angled corridor | 39″ |
| Required doorway entry depth | 62″ |
| Required corridor width for side opening | 35″ |
| Static stability | 9° |
| Driving distance | 10 miles |
| Dynamic stability uphill | 6° |
| Climbing ability | 3° |
| Maximum Climbing Degree | 10° |
| Max over the obstacle height | 1″ |
| Maximum speed forward | < 4 mph |
| Minimum braking distance from max speed | ≤ 39″ |
| Seat plane angle | 4° |
| Effective seat depth | 16.5″ |
| Seat width | 18″ |
| Effective seat width | 20″ |
| Seat surface height at front edge | 17.3″ |
| Backrest angle | 8° |
| Backrest height | 17.5″ |
| Back support height/Backrest height | 16.4″ |
| Distance from Footrest to Seat | 15.3″ |
| Distance from Footrest to Surface | 3″ |
| Footrest length | 4.5″ |
| Footrest to leg angle | 97° |
| Leg to seat surface angle | 114° |
| Armrest height | 9.5″ |
| Front location of armrest structure | 14″ |
| Armrest Length | 15″ |
| Armrest Width | 2″ |
| Armrest Angle | 2.5° |
| Audible noise | ≤ 65 dB(A-weighted) |
| The forces necessary to operate the control devices | Push-button 2N, Rockers 5N |
| Motor Model | 24V 200W |
| Lithium Battery Specification | 24V/10Ah |
| Maximum Output Current of Controller | 35A |
| Maximum Output Current of Charger | 2A |
| Diameter of movable wheels/Castor wheel diameter | 6.5″ |
| Diameter of fixed wheels/Propelling wheel diameter | 11″ |
| Linear Tolerance | ±2° |
| Angular Tolerance | ±2° |
| Mass Tolerance | ±4.4 lbs |
Navigator
| Power Chair Weight (Incl. Batteries) | 60 lbs |
| Maximum Weight Capacity | 397 lbs |
| Maximum Climbing Slope | 6 degrees |
| Maximum Speed | 4 mph |
| Maximum Travel Distance | 10 miles |
| Unfolding Dimensions (L x W x H) | 38″ x 25″ x 37″ |
| Folding Dimensions (L x W x H) | 25″ x 14″ x 31″ |
| Armrest Height (From Ground) | 28″ |
| Seat Height (From Ground) | 18″ |
| Seat Cushion Size (L x W x H) | 18″ x 18″ x 2.75″ |
| Ground Clearance | 3.5″ |
| Frame Material | Aluminum Alloy |
| Wheels Material | Polyurethane Non Flat |
| Size of the Front Wheels (D x W) | 7″ x 1.8″ |
| Size of the Rear Wheels (D x W) | 12.5″ x 2.3″ |
| Power Chair Turning Radius | 33″ |
| Battery Type | Lithium NCM 622 |
| Battery Capacity | 6.6 Ah |
| Battery Voltage Output | DC 24V |
| Battery Weight | 4 lbs |
| Motor Type | Brushless Eco-Drive |
| Motor Power | 250W |
| Motor Voltage Input | DC 24V |
| Brake System | Intelligent Electromagnetic Brake |
| Controller Type | Dual Core Twin Drive |
| Controller Power Input | AC 100-220V, 50-60Hz |
| Voltage Output/Current | DC 24V, 2A |
Traveler
| Model | Forcemech Traveler / FMTL1G1 |
| Material | Aluminum Alloy |
| Dimension | 40.16 x 18.11 x 35.04 |
| Folded Dimension | 40.16 x 18.11 x 16.54 |
| N.W.(w/o battery) | 38.36 lbs |
| Front Wheel Size | 7.87 x 1.97 |
| Rear Wheel Size | 7.87 x 1.97 |
| Loading Capacity | 275 lbs |
| Motor Rated Power | 120W |
| Motor Output Power (Max) | 240W |
| Battery | 24V/10AH (Lithium) |
| Brake Type | Electromagnetic brake 24V4N.m |
| Controller | Brushless |
| Charger | AC100-240V50/60HZ Output: 29.2V-2A/3A |
| Max Speed | 4.35 mph |
| Slope Holding Performance | 9° |
| Overrun Height | 1.57 inches |
| Trench Crossing Wide | 3.94 inches |
| Climbing Capability | ≤9° |
| Mini Turning Radius | ≤47.24 inches |
| Standard Driving Range | 6.21 miles (10Ah); 12.43 miles (20Ah) |
| Upper Charging Port | Available |
| Ground Clearance | 2.95 inches |

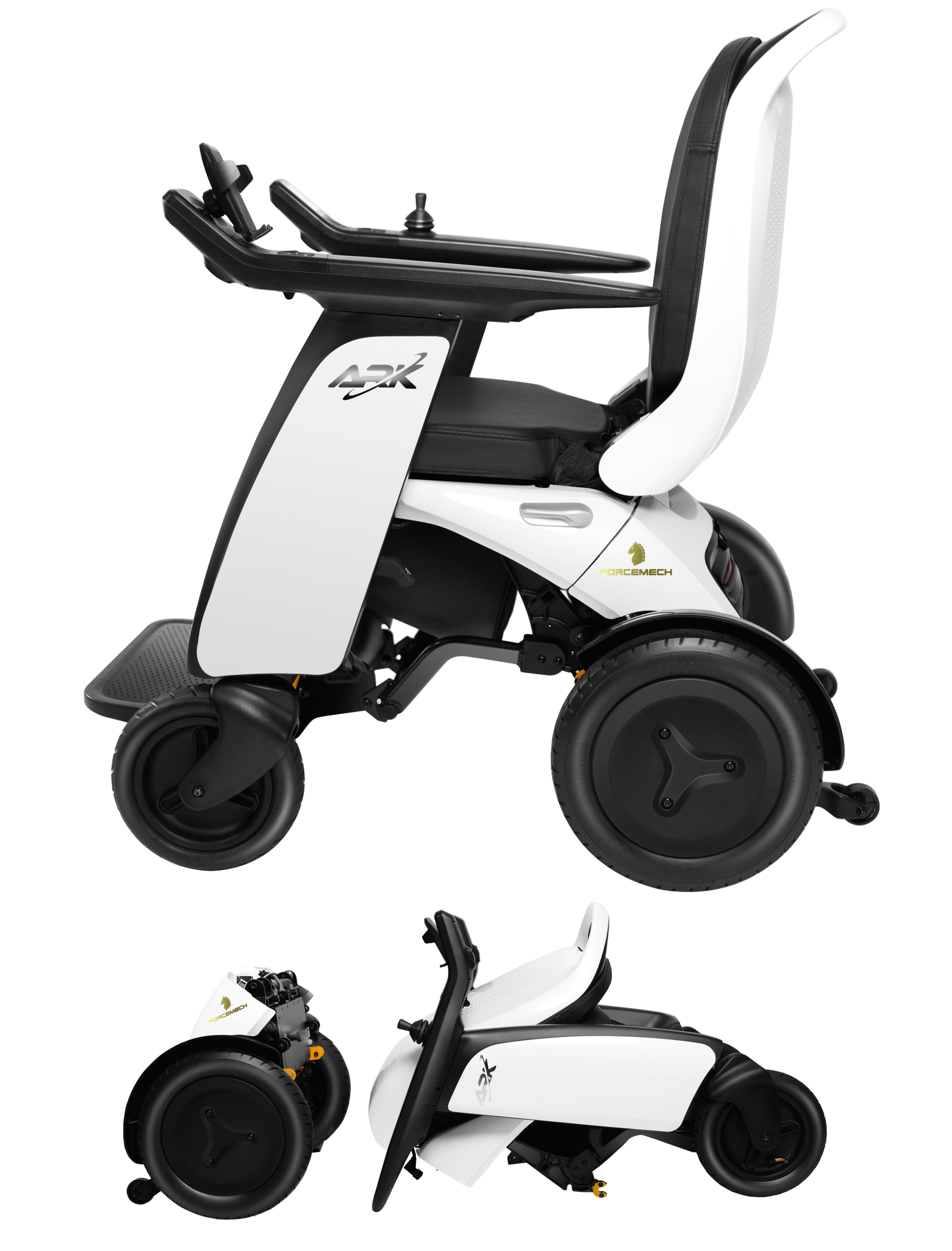

ARK
| Overall Length | 41″ |
| Overall Width(L*W*H) | 24.5″ |
| Overall Height | 40″ |
| Seat Width | 19″ |
| Seat Depth | 18″ |
| Seat Height | 21″ |
| Backrest Height | 59″ |
| Width of Folding Front Frame | 24″ |
| Wheel Type | Pneumatic Tire |
| Front Wheel Diameter | 9″ |
| Rear Wheel Diameter | 12.5″ |
| Chair Weight | 90lbs |
| Maximum Loading Capacity | 330lbs |
| Operation Voltage | DC24V |
| Battery Type | Lithium Ion 24V 16Ah |
| Motor Type | Brushless 300Watt x2 |
| Controller | All Directional Joystick with LED screen |
| Break System | Automatic Electromagnetic |
| Charger Type | AC 110-220V/50Hz |
| Overload Protection | YES |
| Maximum Speed | 4MPH |
| Slope Capacity | ≤9° |
| Climbing Capacity | ≤10° |
| Obstacle Clerance Height | 1.5″ |
| Cross Groove Width | 4″ |
| Turning Radius | 39″ |
| Maximum Travel Range | 15 Miles |
